Types of Grounding Systems Based on IEEE Standards

Table of Contents

Grounding may sound unfamiliar to some, but it plays a crucial role in ensuring the safety and efficiency of electrical systems. Grounding is essential in any electrical installation, and its design varies depending on safety needs, regulatory standards, and local requirements. Choosing the right grounding system is critical for maintaining a safe and efficient electrical network. In this article, we’ll explore the different types of grounding systems as outlined by IEEE standards.


The Importance of Grounding Systems

Before diving into the types of grounding systems, let's first understand why grounding is so essential:


  • Protects against sudden voltage surges that can harm individuals and electrical devices.
  • Prevents damage to equipment due to voltage spikes from lightning or other surges.
  • Redirects lightning energy safely to the ground, avoiding hazards on the surface.
  • Ensures stable and efficient performance of electrical installations.
  • Reduces the risk of fire or explosion by managing high currents and long-duration power surges.
  • Provides protection from electrical shock, safeguarding both people and equipment.

Types of Grounding Systems Based on IEEE Standards

According to IEEE standards, there are five major grounding systems commonly used in electrical installations:


  1. TN-S (Terre Neutral - Separate)
  2. TN-C-S (Terre Neutral - Combined - Separate)
  3. TT (Double Terre)
  4. TN-C (Terre Neutral - Combined)
  5. IT (Isolated-Terre)

Each of these systems serves specific needs, offering varying levels of safety and reliability. Let’s explore each system in detail.

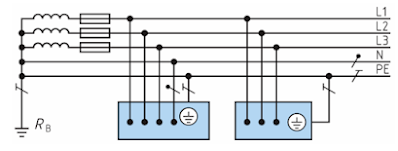

1. TN-S (Terre Neutral - Separate)

In a TN-S system, the neutral and earth wires are separate throughout the installation. The neutral from the power source is connected to the ground at a single point, ensuring that the neutral wire in the consumer installation is directly tied to the power source's neutral. This system is ideal for installations located near power sources, as it offers a high level of safety by separating the protective earth from the neutral.

Types of Grounding Systems


2. TN-C-S (Terre Neutral - Combined - Separate)

In the TN-C-S system, the neutral (N) and protective earth (PE) are combined in parts of the system but separated in others. The system begins with a combined PEN conductor (neutral and earth combined) but separates into individual neutral (N) and protective earth (PE) conductors later in the installation. This setup offers both cost-efficiency and safety by leveraging combined conductors while also maintaining separated conductors where needed.

Types of Grounding Systems


3. TT (Double Terre)

The TT system differs from others in that the consumer must provide their own grounding electrode. The neutral at the power source is grounded independently from the consumer’s grounding system, making it necessary for the consumer to install their own electrode that connects to the ground. This system is common in rural areas and installations that require an independent ground, as it provides strong isolation between the source and the user.

Types of Grounding Systems


4. TN-C (Terre Neutral - Combined)

In a TN-C system, the neutral and earth are combined throughout the installation using a single PEN conductor. This setup is simpler and cheaper but presents some safety risks. Since there is no dedicated protective earth, the PEN conductor is vulnerable to faults, which could result in electrical shock or equipment damage. Due to these safety concerns, TN-C systems are now rarely used in modern installations.

Types of Grounding Systems


5. IT (Isolated-Terre)

An IT system is unique in that the electrical system is isolated from the ground, with no direct connection to it. Instead, the system connects to the ground through an impedance, limiting over-voltage during system faults. This setup is ideal for environments where uninterrupted power is critical, such as hospitals or sensitive industrial equipment, as it helps prevent dangerous voltage levels during faults.

Types of Grounding Systems


Benefits of Grounding Systems

Implementing the right grounding system offers several benefits:


  • Protects individuals and equipment from electrical hazards: Grounding helps prevent electrical shock and safeguards equipment from damage due to surges.
  • Ensures efficient operation of electrical systems: Proper grounding maintains system stability, minimizing interruptions and performance issues.
  • Prevents fire hazards: Grounding controls the flow of excessive current, reducing the risk of fires caused by electrical faults.
  • Increases system reliability: By redirecting fault currents to the ground, grounding enhances the overall reliability of the electrical system.

Grounding is a critical component of electrical safety and system stability. By understanding the different types of grounding systems based on IEEE standards, engineers and technicians can select the most suitable option for each installation. From the TN-S system’s high safety level to the IT system's specialized protection for sensitive equipment, each grounding method serves a unique purpose in maintaining a secure and efficient electrical environment.


For more articles on electrical and electronic systems, continue exploring Electrical.KelasTeknisi.com, your trusted source for expert knowledge.


References:


Hari Maghfiroh (2016). Macam-Macam Sistem Grounding at http://keretalistrik.com (Accessed 4 April).

Wijidan Sidiq Ramadhan (2016). Mengenal Sistem Pentanahan atau Grounding at https://www.kelistrikanku.com (Accessed 4 April).

Randra Agustio Efryansah (2024). Jenis-Jenis Sistem Pentanahan (Grounding) Berdasarkan Standar IEEE at https://www.kelasteknisi.com/2021/08/jenis-jenis-sistem-pentanahan.html. (Accessed 26 September)
